HIGH SPEED SAUSAGE PEELING MACHINE

　
SABRE-30

SABRE-30

  • Introducing the New Sausage Peeling Machine Model !
    It solves your peeling concerns with faster processing and higher quality finish!
    • Peeling a wide variety of products Keep Sanitary Conditions
  • Peeling a wide variety of products
  • It is possible to peel sausage products of cellulose casing from 13 mm to 36 mm. The minimum length of product is 28.5 mm. So it can handle a wide range from cocktail sausages through long jumbo length products..
  • High speed peeling
  • The maximum speed is 300 meters a minute. Operators can adjust the peeling speed depending on the product sizes.
    		•
    Easy & Quick Maintenance Easy Product Changeover
  • Excellent Maintainability
  • ・ With over 90% open area on the back and sides of the machine, you can quickly access any part for maintenance.
    ・ The bearing units are modular, making replacements easier and reducing repair time.
    ・ Blower maintenance and replacement are also simplified forgreater efficiency.
    		•
  • Sliding Cover
  • The safety cover has been upgraded to a sliding design, making it easier to operate and maintain.
  • Convenient Size Adjustment Feature
  • With a built-in scale to measure product diameter, size adjustments can be made easily and accurately.
    		•
    High speed peeling Vacuum Tank unit
  • Vacuum Tank unit
  • Peeled casings are delivered to the dust box in the vacuum tank. For customers who adopt central vacuuming system at their plants, we provide SABRE-30 without vacuum tank.
    		•
  • Sausage detection sensor (optional)
  • Limits steam supply to peeling only, reducing energy costs.
    		•

    ■ SPECIFICATION

    　　WITHOUT VACUUM TANK UNIT 　　　　WITH VACUUM TANK UNIT
    Product Size Diameter 13 mm ～ 36 mm
    Length 3 pitches (28.5 mm) more
    Peeling Speed Max.980 ft (300 m) / min
    Sausage Loading Height High type : 1,218 mm (47 61/64 in)
    Low type : 1,060 mm (41 47/64 in)
    Height High type : 1,551 mm (61 1/16 in )
    Low type : 1,398 mm (55 3/64 in)
    Width 991 mm (39 1/64 in) 2,286 mm (90 in）
    Depth 662 mm (16 1/16 in) 737 mm (29 1/64 in)
    Weight Approx.195 kg (430 lbs.) Approx.385 kg (848 lbs.)
    Power Requirement Three-phase 0.8 kW Three-phase 1.9 kW
    Air Requirement Pressure : 500-700 kpa (75-100 PSI)
    Comsumption : 283 L (9.9 ft3) - 425 L (15 ft3) / min
    Steam Requirement Pressure : 30 PSI (2.1 kgf/c㎡)
    Comsumption : 0-50 kg/h
  • ※ Specifications and equipment are subject change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

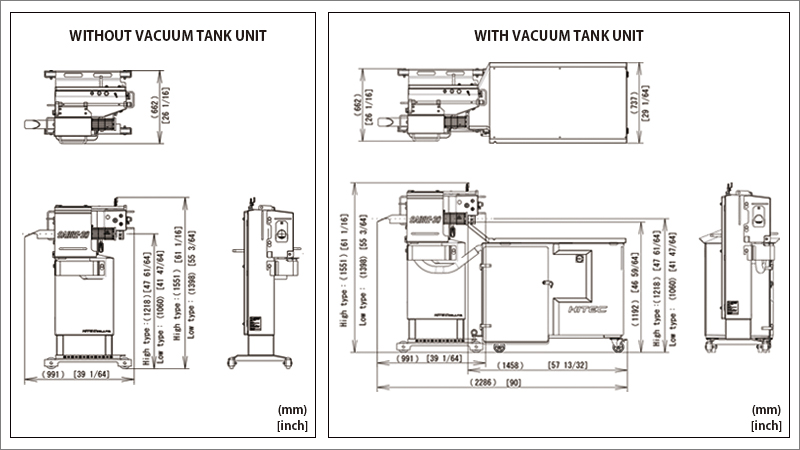

    • ■ LAYOUT

    　　　　　　　　　　　　　　　　　　
    Layout of SABRE-30
  • ※ Layout dimension includes dimension of optional equipment.
